    Set up AI agent token exchange

    Identity Engine

    Learn how to configure token exchange for AI agents so that you can securely request and use credentials (ID-JAG, secrets, service accounts, or third-party access tokens) to access protected resources on behalf of authenticated users, and so that AI agents can securely call each other as part of automated workflows (agent-to-agent).

    Learning outcomes

    • Understand how to set up the token exchange flow for AI agents.

    What you need

    • An Okta org that's subscribed to Okta for AI Agents

    • An Okta admin account with the super admin role

    • A registered AI agent in your Okta org. See Add and register AI agents (opens new window).

      Note: If you're using the Connect to another AI Agent resource type, you need two registered AI agents.

    • A Resource connection that's configured for each AI agent, defining which resources they're allowed to access. See Connect AI agents to resources (opens new window).

      • If you're connecting to an Okta custom authorization server, define the custom scopes for each resource app where you're requesting access. These scopes specify what permissions the token exchange grants in the final access token.

    • User access or machine access (opens new window) configured for each AI agent, defining the users, apps, and other AI agents that can authorize the AI agent to act on their behalf. See the Configure user access or Configure machine access sections of the Add AI agents manually (opens new window) page.

    Overview

    You've registered an AI agent (opens new window), and configured the access (opens new window) that you require. Configuring this access defines the users, apps, and other AI agents that can authorize an AI agent to act on their behalf. See Agent-to-agent connections (opens new window).

    You've also created resource connections (opens new window) that define the AI agent's access to your org's resources. Now, the agent must obtain the actual tokens or credentials to perform tasks.

    Note: The connectionType (opens new window) property in the AI Agent Connections API identifies how an AI agent obtains credentials for a resource. Okta uses this value to determine which token exchange flow to apply to the connection.

    You can connect an AI agent (opens new window) to the following resource types with the supported connection types.

    Resource type Connection type (connectionType (opens new window))
    Agent Gateway Brokered consent STS (STS_ACCESS_TOKEN (opens new window))
    Grants the AI agent access to an Okta-secured endpoint that aggregates tools from multiple MCP servers. This connection uses an access token that's issued by a custom authorization server. See Configure an Agent Gateway > What happens at runtime.

    Select OAuth STS from the Instructions for dropdown on the right to review the brokered consent STS token exchange flow.
    Authorization server Cross App Access (Authorization server) (IDENTITY_ASSERTION_CUSTOM_AS (opens new window))
    Grants the AI agent access to resources that are protected by an Okta custom authorization server. This resource type is supported by Cross App Access (opens new window), which uses ID-JAG (Identity Assertion JWT).

    Select Authorization server (ID-JAG) from the Instructions for dropdown on the right to review the authorization server token exchange flow.
    Secret Secret (STS_VAULT_SECRET (opens new window))
    Uses a static credential for a downstream resource that has been vaulted in Okta Privileged Access (OPA).

    Select Secret from the Instructions for dropdown on the right to review the OPA vaulted secret STS token exchange flow.
    Service account Service account (STS_SERVICE_ACCOUNT (opens new window))
    Uses a static credential for an app that's specified in Universal Directory. This resource is vaulted in Okta Privileged Access.

    Select Service account from the Instructions for dropdown on the right to review the OPA service account static credentials token exchange flow.
    Application Okta supports the following connections for app resources:
    • Cross App Access (App instance) (IDENTITY_ASSERTION_APP_INSTANCE (opens new window))
      Uses the Cross App Access token exchange flow with an app instance in the identity assertion.

      Select Authorization server (ID-JAG) from the Instructions for dropdown on the right to review the XAA authorization server token exchange flow.
    • Brokered consent STS (STS_ACCESS_TOKEN (opens new window))
      Uses a third-party access token that's issued by the third-party authorization server and brokered by Okta. This connection flow requires user consent before an AI agent can act on behalf of the user.

      Select OAuth STS from the Instructions for dropdown on the right to review the brokered consent STS token exchange flow.
    MCP server Okta supports the following connections for MCP server resources:
    Connect to another AI Agent Cross App Access (Agent-to-agent) (IDENTITY_ASSERTION_A2A_SERVER (opens new window))
    Allows one AI agent to securely invoke another AI agent as a downstream resource protected by an Okta custom authorization server. Through XAA token exchange, the original service identity is maintained across both agents while each obtains specific access tokens for its next connection.

    Select Agent-to-agent from the Instructions for dropdown on the right to review the AI agent-to-agent token exchange flow.

    After the resource type is configured and the AI agent has the token or credentials, it can then perform tasks on the connected resource.

    Note: If you're integrating a third-party AI agent platform, such as AWS Bedrock or Azure AI Foundry, see Set up third-party AI Agent token exchange. This guide provides a complete setup walkthrough and a functional demo that you can test end to end.

    Note: This guide describes the token exchange when Okta issues the ID-JAG. If your agent holds an ID-JAG issued directly by an external IdP or by another Okta org, it presents that ID-JAG directly to your custom authorization server and doesn't use the org authorization server exchange that's described here. See Configure XAA with an external IdP.

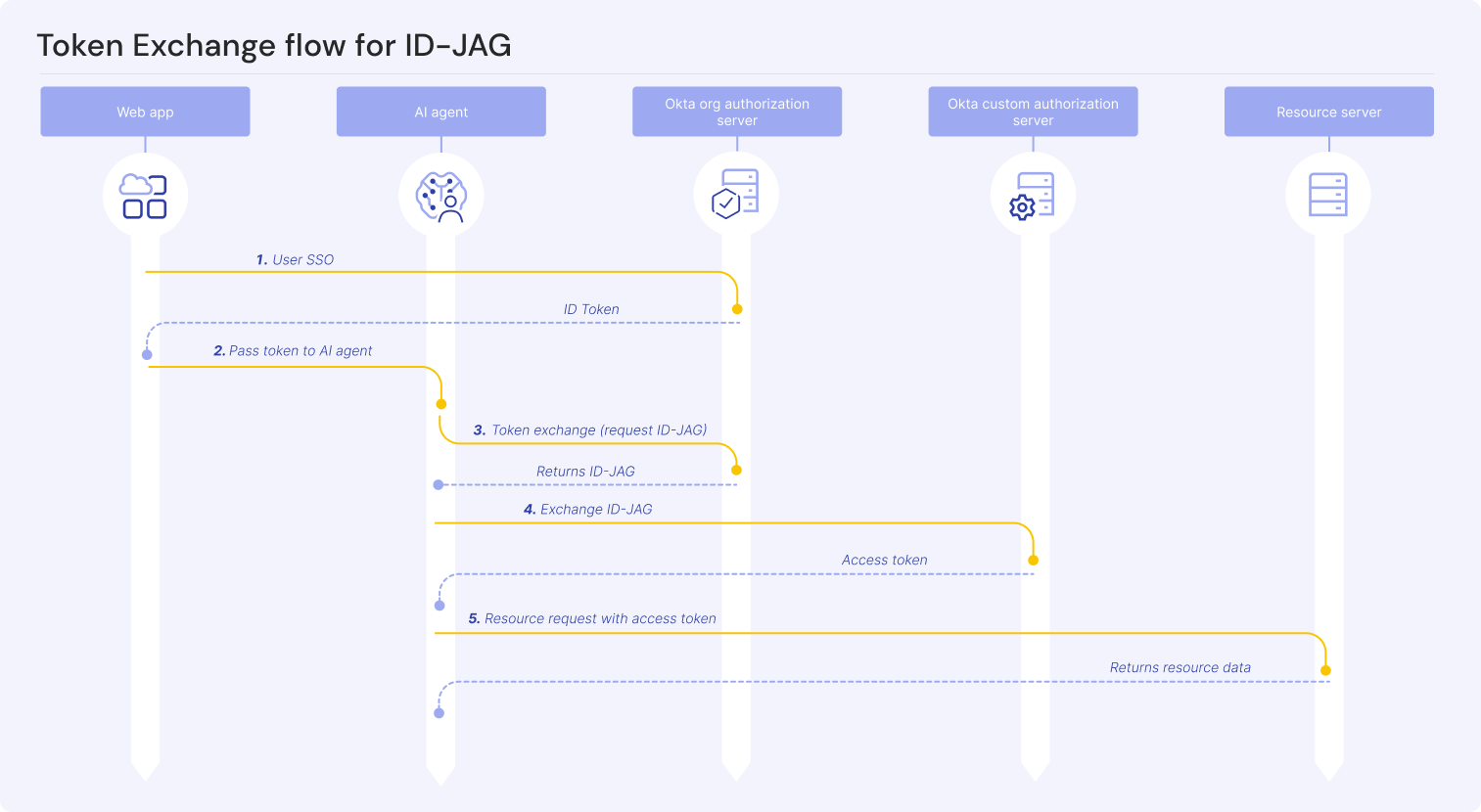

    Token exchange flow

    The following diagrams and steps describe the

    token exchange flow. If you want to change the token exchange flow on this page, select that flow from the Instructions for dropdown list on the right.

    Authenticate with Okta

    The exchange flow

    Flow specifics

    Note: The instructions on this page are for the

    token exchange flow. If you want to change the token exchange flow on this page, select that flow from the Instructions for dropdown list on the right.

    Initial authentication

    To initiate token exchange, the AI agent (user access configuration) or client (machine access configuration) must first authenticate with the appropriate Okta authorization server and obtain a subject token (either an ID token or an access token). This token must satisfy the access requirements for the AI agent.

    Note: Okta also accepts the CIMD URL as the client_id in an OAuth request, just as it would a static client ID. See Use the CIMD client ID in a token request for more detailed information.

    ID token

    To obtain a subject token (subject_token) for a user, the AI agent or client sends a request to the Okta org or custom authorization server to obtain an ID token. Use the Authorization Code with PKCE grant type to obtain an authorization code for the client. See Implement authorization by grant type.

    Response

    The response contains the access and ID token and the openid scope.

    {
  "token_type": "Bearer",
  "expires_in": 3600,
  "access_token": "eyJraW...OYqhUp6g",
  "scope": "openid",
  "id_token": "eyJ...vc_JaEQCw"
}

    Access token

    To obtain a subject token (subject_token) for itself, the client sends a request to an Okta custom authorization server to obtain an access token. Use the Client Credentials grant type to obtain the subject token. See Implement authorization by grant type.

    The request includes the resource parameter. The parameter value is the resource URL that's configured on the agent that this client is invoking. For example resource: https://agent1.example.com.

    Response

    The token returned in the response contains the aud claim. The claim value is the resource URL (https://agent1.example.com) for the AI agent. This is the agent that performs token exchange.

    {
  "token_type": "Bearer",
  "expires_in": 3600,
  "access_token": "eyJraWQiOiJQLVgxeC1ITWtuSThPS0lUeE5TWVlsMHR0blJobUY4Q0xTaUdBenlwemJVIiwiYWxnIjoi...",
  "scope": "chat.read+chat.history"
}

    Exchange subject token for resource token

    Note: The instructions on this page are for the

    token exchange flow. If you want to change the token exchange flow on this page, select that flow from the Instructions for dropdown list on the right.

    Revoke tokens
