Okta and SCIM Version 2.0

This reference focuses on how Okta API endpoints share information with System for Cross-domain Identity Management (SCIM) specific API calls.

This document specifically covers Version 2.0 of the SCIM specification. For Version 1.1 of the SCIM specification, see our SCIM 1.1 reference.

The SCIM protocol is an app-level REST protocol for provisioning and managing identity data on the web. The protocol supports creation, discovery, retrieval, and modification of core identity resources.

To better understand SCIM and the specific implementation of SCIM using Okta, see our Understanding SCIM guide or our blog post on What is SCIM?.

Note: Okta implements SCIM 2.0 as specified in the RFC documents from the Internet Engineering Task Force:

SCIM User operations

Create Users

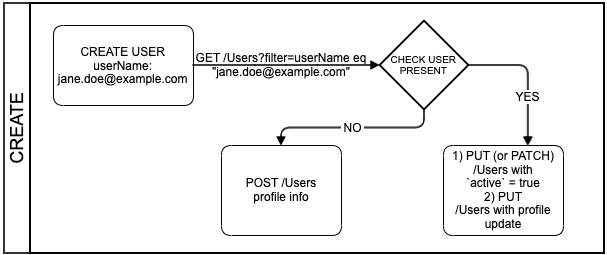

Simple flow diagram for create User process

The User creation operation brings the user's app profile from Okta over to the Service Provider as a User object. A user's app profile represents the key-value attributes defined on the Profile tab when a User object is added.

To enable user provisioning, you must configure the provisioning options in the Admin Console:

  1. Select your SCIM integration from the list of integrations in your Okta org.
  2. Click To App and Edit under the Provisioning tab.
  3. Click Enable and then Save in the Create User section.

For more information on enabling the provisioning features of your SCIM integration, see Configure provisioning for an app integration.

After you complete this step, whenever a user is assigned to the integration in Okta, the following requests are made against the SCIM server:

  • Determine if the User object exists. Okta runs a query against the userName values stored on the SCIM server. If the query matches a User object, the SCIM server returns the User object's unique ID value. Okta stores this value as the externalId value in the Okta user profile.
  • If the User isn't found on the SCIM server, create the User.
  • If the User is found on the SCIM server, but the Okta account isn't active, activate the User in Okta.
  • If the User is found on the SCIM server and the Okta account is active, then update the Okta profile by setting its unique externalId value to match the ID value returned from the SCIM server.

Determine if the User already exists

GET /Users

Okta checks that the User object exists on the SCIM server through a GET method request with the filter=userName eq "{userName}" query parameter. Your SCIM server must support this query parameter to provision users with Okta successfully. This check is performed using the eq (equal) operator against the unique identifier configured for the SCIM integration.

For example, if you configure the email attribute as a unique identifier, then the query parameter to determine if the user exists is filter=userName eq "{email}".

Note: The filter must check an attribute that is unique for all Users in the Service Provider profiles.

For Okta Integration Network (OIN) integrations, this filter is configured with the help of the assigned Okta App analyst during the submission process. Integration submissions are handled through the OIN Manager.

The requests from Okta to the Service Provider are of the form:

Copy
Copied
GET /scim/v2/Users?filter=userName%20eq%20%22test.user%40okta.local%22&startIndex=1&count=100 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The SCIM app checks the filter provided and returns an empty response if no Users match the filter criteria. For example:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 01:49:39 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:ListResponse"],
    "totalResults": 0,
    "startIndex": 1,
    "itemsPerPage": 0,
    "Resources": []
}

Another acceptable response from the SCIM app if no User objects match the filter criteria is to return the error schema response:

Copy
Copied
HTTP/1.1 404 Not Found
Date: Tue, 10 Sep 2019 01:58:03 GMT
Content-Type: text/html; charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:Error"],
    "detail": "User not found",
    "status": 404
}

If the SCIM server does return a User object, Okta automatically matches the result with the user in Okta and sends the user's app profile to the SCIM server.

Create the User

POST /Users

If the User object isn't found on the SCIM server, then Okta attempts to create it through a POST method request that contains the user's app profile. The request looks like the following:

Copy
Copied
POST /scim/v2/Users HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Test",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work"
    }],
    "displayName": "Test User",
    "locale": "en-US",
    "externalId": "00ujl29u0le5T6Aj10h7",
    "groups": [],
    "password": "1mz050nq",
    "active": true
}

Note: Okta sends the password parameter in a create user request, even if password sync isn't enabled. This parameter acts as a placeholder for legacy provisioning platforms and its value isn't relevant or sensitive in nature.

The response from the SCIM server contains the created User object:

Copy
Copied
HTTP/1.1 201 Created
Date: Tue, 10 Sep 2019 02:02:58 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Test",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work"
    }],
    "displayName": "Test User",
    "locale": "en-US",
    "externalId": "00ujl29u0le5T6Aj10h7",
    "active": true,
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

Another scenario is if your SCIM server has custom attributes that you want to add for any new user. Any custom attributes defined in your app schema for user profiles are applied to the user's app profile when the user is created. The request to the SCIM server looks like the following:

Copy
Copied
POST /scim/v2/Users HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Test",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work"
    }],
    "displayName": "Test User",
    "locale": "en-US",
    "groups": [],
    "password": "1mz050nq",
    "active": true
}

The response from the SCIM server contains the created User object with the additional custom attributes:

Copy
Copied
HTTP/1.1 201 Created
Date: Tue, 10 Sep 2019 02:02:58 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Test",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work"
    }],
    "displayName": "Test User",
    "locale": "en-US",
    "externalId": "00ujl29u0le5T6Aj10h7",
    "active": true,
    "userType": "Contractor"
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

In this example, the externalID and userType attributes weren't included in the original POST method request, but are generated and returned in the SCIM server response.

Note: If your custom attributes are defined in your Okta integration (as an App to Okta mapping), the custom attributes aren't applied to the Okta user profile until an admin runs an import from the SCIM app or a Force Sync operation.

If the SCIM server returns an empty response body to the provisioning request, then Okta marks the operation as invalid, and the Admin Console displays an error:

"Automatic provisioning of user userName to app AppName failed: Error while creating user displayName: Create new user returned empty user."

If the User object that Okta tries to create exists in the Service Provider app, then the Service Provider needs to respond with an error schema to stop the provisioning job. The response looks like the following:

Copy
Copied
HTTP/1.1 409 Conflict
Date: Tue, 10 Sep 2019 02:22:30 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:Error"],
    "detail": "User already exists in the database.",
    "status": 409
}

Retrieve Users

GET /Users

When importing User objects from the SCIM server, Okta accesses the /Users endpoint and processes them page by page, using startIndex, count, and totalResults as pagination references. Similarly, when returning large lists of resources, your SCIM implementation must support pagination. Using a limit of count results and an offset of startIndex returns smaller groupings of resources in a request.

Note: The itemsPerPage, startIndex, and totalResults values need to be exchanged as integers, not as strings.

Okta uses count=100 as the pagination reference to return up to 100 elements. If the value of totalResults is higher than 100, then after Okta finishes retrieving the first 100 resources, the startIndex becomes startIndex+100 and is passed as a query parameter along with count in a new request to the /Users endpoint. This pagination operation repeats until all pages are viewed.

The SCIM server must consistently return the same ordering of results for the requests, regardless of which values are provided for the count and startIndex pagination references. For more information on pagination, see Section 3.4.2.4 of the V2.0 specification.

The following is a sample request from Okta to retrieve the Users from the SCIM app:

Copy
Copied
GET /scim/v2/Users?startIndex=1&count=100 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The response to this request is a JSON list of all the resources found in the SCIM app.

Retrieve a specific User

GET /Users/{userID}

Okta can also run a GET method request to check if a specific User object still exists on the SCIM server. The request looks like the following:

Copy
Copied
GET /scim/v2/Users/23a35c27-23d3-4c03-b4c5-6443c09e7173 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The response from the server is the User object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 03:46:53 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Test",
        "middleName": "",
        "familyName": "User"
    },
    "active": true,
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work",
        "display": "test.user@okta.local"
    }],
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

Update a specific User (PUT)

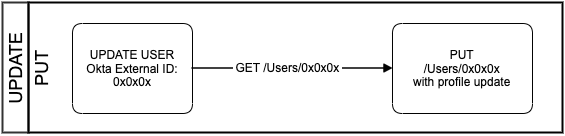

Simple flow diagram for updating a User with a PUT method request

Updating a User object refers to modifying an attribute in the Okta user's app profile that is mapped to an attribute in the SCIM app.

To update a User object, you need to enable the functionality in the Admin Console:

  1. Select your SCIM integration from the list of integrations in your Okta org.
  2. Under the Provisioning tab, click To App .
  3. In the Update User Attributes option, click Enable and then Save .

Retrieve the User

GET /Users/{userID}

To update a user, Okta first makes a GET method request to /Users/{userID} and retrieves the body of the User object:

Copy
Copied
GET /scim/v2/Users/23a35c27-23d3-4c03-b4c5-6443c09e7173 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

When the SCIM server receives this request, it responds with the User object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 03:46:53 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Another",
        "middleName": "",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work",
        "display": "test.user@okta.local"
    }],
    "active": true,
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

Update the User

PUT /Users/{userID}

Note:

  • For any new OIN app integrations, all updates to a User object are handled using a PUT method request, except as noted in Update a specific User (PATCH) .
  • For any custom app integrations created using the App Integration Wizard (AIW), all updates to a User object are handled using a PUT method request.

After the SCIM server retrieves the User object, Okta modifies the attributes that were changed and runs a PUT method request with the new body to the /Users/{userID} endpoint:

Copy
Copied
PUT /scim/v2/Users/23a35c27-23d3-4c03-b4c5-6443c09e7173 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Another",
        "middleName": "Excited",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work",
        "display": "test.user@okta.local"
    }],
    "active": true,
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

The response from the SCIM server needs to be the updated User object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 03:48:10 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Another",
        "middleName": "Excited",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work",
        "display": "test.user@okta.local"
    }],
    "active": true,
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

Update a specific User (PATCH)

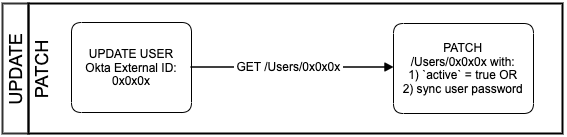

Simple flow diagram for updating a User with a PATCH method request

PATCH /Users/{userID}

For new OIN app integrations, the following operations update a User object through a PATCH method request:

  • Activating a User
  • Deactivating a User
  • Syncing the User password

All other updates to User objects are handled through a PUT method request.

For any custom app integrations created using the AIW, all SCIM operations that update a User object, including these operations, are always sent through a PUT method request.

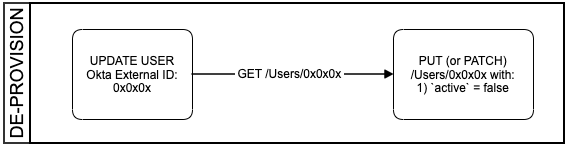

The active attribute in an Okta user profile represents the user's current status.

To deactivate users, you need to enable the functionality in the Admin Console:

  1. Select your SCIM integration from the list of integrations in your Okta org.
  2. Click To App and Edit under the Provisioning tab.
  3. Click Enable and then Save in the Deactivate Users section.

When a user is deactivated, Okta sends this request:

Copy
Copied
PATCH /scim/v2/Users/23a35c27-23d3-4c03-b4c5-6443c09e7173 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [{
        "op": "replace",
        "value": {
            "active": false
        }
    }]
}

The response from the SCIM server needs to be the updated User object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 03:50:23 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:User"],
    "id": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
    "userName": "test.user@okta.local",
    "name": {
        "givenName": "Another",
        "middleName": "",
        "familyName": "User"
    },
    "emails": [{
        "primary": true,
        "value": "test.user@okta.local",
        "type": "work",
        "display": "test.user@okta.local"
    }],
    "active": false,
    "groups": [],
    "meta": {
        "resourceType": "User"
    }
}

Note: The SCIM server response to PATCH method requests can also be an HTTP 204 response, with no body returned.

Delete Users

Simple flow diagram for deprovisioning a User

DELETE /Users/{userID}

Okta doesn't perform DELETE operations on User objects in your SCIM app.

If a user is deactivated or removed from your integration inside Okta, then Okta sends a request to your SCIM app to set the active attribute to false. There's no deprovisioning event sent for users that are suspended inside Okta.

  • For all new OIN app integrations, this request to update a User object is sent through a PATCH method request.
  • For any custom app integrations created using the AIW, this request is sent through a PUT method request.

For a detailed explanation on deleting users, see Delete (Deprovision).

SCIM Group operations

Create Groups

POST /Groups

To create a Group object on the SCIM server, you first need to enable provisioning with the Group Push feature in the Admin Console:

  1. Select your SCIM integration from the list of integrations in your Okta org.
  2. Click Push Groups on the Push Groups tab.

You can select which existing Okta group to push, either by specifying a name or a rule. If a group doesn't exist, create a group in Okta and then push it to the SCIM server. For more information, see Group Push in the Okta Help Documentation.

After the group is selected, Okta makes a POST method request to the Service Provider:

Copy
Copied
POST /scim/v2/Groups HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "displayName": "Test SCIMv2",
    "members": []
}

When it receives this request, the SCIM server responds with the Group object as it would for a GET method request to /Groups/${groupID}/:

Copy
Copied
HTTP/1.1 201 Created
Date: Tue, 10 Sep 2019 04:54:18 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "id": "abf4dd94-a4c0-4f67-89c9-76b03340cb9b",
    "displayName": "Test SCIMv2",
    "members": [],
    "meta": {
        "resourceType": "Group"
    }
}

Retrieve Groups

GET /Groups

When importing Group objects from the SCIM server, Okta accesses the /Groups endpoint and processes them page by page, using the startIndex, count, and totalResults values for reference. Similarly, when returning large lists of resources, your SCIM implementation must support pagination. Using a limit of count results and an offset of startIndex returns smaller groupings of resources in a request.

Note: The itemsPerPage, startIndex, and totalResults values need to be exchanged as integers, not as strings.

Okta uses count=100 as the pagination reference to return up to 100 elements. If the value of totalResults is higher than 100, then after Okta finishes retrieving the first 100 resources, the startIndex becomes startIndex+100 and is passed as a query parameter along with count in a new request to the /Groups endpoint. This pagination operation repeats until all pages are viewed.

The SCIM server must consistently return the same ordering of results for the requests, regardless of which values are provided for the count and startIndex pagination references.

The following is a sample request from Okta to retrieve the Group objects from the SCIM app:

Copy
Copied
GET /scim/v2/Groups?startIndex=1&count=100 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The response to this request is a JSON list of all the Group objects found in the SCIM app.

You must also implement filtering results with the eq (equals) operator on your SCIM server. Okta checks that the Group object exists on the SCIM server through a GET method request with the filter=displayName eq "{groupName}" path parameter, where groupName is the group name on the target app.

Okta uses the GET /Groups request with a group name filter when you want to update a group, but the external group ID isn't known.

Note: One case where the external group ID isn't known is when admins configure the provisioning app integration and clear the Import Groups checkbox. See Configure provisioning for an app integration.

The following is an example of a request to the SCIM server:

Copy
Copied
GET /scim/v2/Groups?filter=displayName%20eq%20%22Test%20SCIMv2%22&startIndex=1&count=100 HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The SCIM server processes the request and responds with one of the following:

  • A list of Groups if they match the filter criteria, for example:
    Copy
    Copied
    HTTP/1.1 200 OK
    Date: Wed, 15 May 2024 10:02:45 GMT
    Content-Type: text/json;charset=UTF-8

    {
        "schemas": [
            "urn:ietf:params:scim:api:messages:2.0:ListResponse"
        ],
        "totalResults": 1,
        "startIndex": 1,
        "itemsPerPage": 1,
        "Resources": [
            {
            "id": "e7d09e9b3faa4888b65cf9e9316cba1c",
            "meta": {
                "created": "2024-05-15T09:21:23",
                "lastModified": "2024-05-15T09:21:23",
                "version": "v1.0"
            },
            "displayName": "Test SCIMv1"
           },
        ]
    }
  • An empty response if no Groups match the filter criteria, for example:
    Copy
    Copied
    HTTP/1.1 200 OK
    Date: Wed, 15 May 2024 11:02:14 GMT
    Content-Type: text/json;charset=UTF-8

    {
        "schemas": ["urn:ietf:params:scim:api:messages:2.0:ListResponse"],
        "totalResults": 0,
        "startIndex": 1,
        "itemsPerPage": 0,
        "Resources": []
    }

Retrieve specific Groups

GET /Groups/{groupID}

There are situations where Okta needs to run a GET method request on a specific {groupID}, for example, to see if the Group object still exists on the SCIM server. The request looks like the following:

Copy
Copied
GET /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The response from the server is the Group object details:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 05:06:25 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "id": "abf4dd94-a4c0-4f67-89c9-76b03340cb9b",
    "displayName": "Test SCIMv2",
    "members":  [{
        "value": "b1c794f24f4c49f4b5d503a4cb2686ea",
        "display": "SCIM 2 Group A"
    }],
    "meta": {
        "resourceType": "Group"
    }
}

Note: You must return the members list payload when GET /Groups/{groupID} is requested without any query parameters.

Update a specific Group name

PATCH /Groups/{groupID}

PUT /Groups/{groupID}

Updates to existing names for Okta groups are handled by a method request to your SCIM app. The Group object must be already pushed out to the SCIM server.

  • For all new OIN app integrations, this request to update a Group object is sent through a PATCH method request.
  • For custom app integrations created using the AIW, this request to update a Group object is sent through a PUT request.
Copy
Copied
PATCH /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
    "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
    "Operations": [{
        "op": "replace",
        "value": {
            "id": "abf4dd94-a4c0-4f67-89c9-76b03340cb9b",
            "displayName": "Test SCIMv2"
        }
    }]
}

The group name update operation triggers each time there's a group membership update operation.

The SCIM server response returns the updated Group object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 05:08:48 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "id": "abf4dd94-a4c0-4f67-89c9-76b03340cb9b",
    "displayName": "Test SCIMv20",
    "members": null,
    "meta": {
        "resourceType": "Group"
    }
}

Note: The SCIM server response to PATCH method requests can also be an HTTP 204 response, with no body returned.

Update specific Group membership

PATCH /Groups/{groupID}

PUT /Groups/{groupID}

To add or remove users inside a specific pushed Group object on the SCIM server, Okta requires the following:

  • The User must be a member of the Group in Okta.
  • The User has been added under the Assignments tab of the SCIM integration inside the Admin Console.
  • The Group is pushed under the Push Groups tab of the SCIM integration inside the Admin Console.

If these three requirements are met, Okta sends a request to add the specified Users to the Group object on the SCIM server.

  • For all new OIN app integrations, a PATCH method request is used to update a Group object, for example:
    Copy
    Copied
    PATCH /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
    User-Agent: Okta SCIM Client 1.0.0
    Authorization: <Authorization credentials>

    {
        "schemas": ["urn:ietf:params:scim:api:messages:2.0:PatchOp"],
        "Operations": [{
            "op": "remove",
            "path": "members[value eq \"89bb1940-b905-4575-9e7f-6f887cfb368e\"]"
            },
            {
            "op": "add",
            "path": "members",
            "value": [{
                "value": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
                "display": "test.user@okta.local"
            }]
        }]
    }
  • For custom app integrations created using the AIW, a PUT method request is used to update a Group object, for example:
    Copy
    Copied
    PUT /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
    User-Agent: Okta SCIM Client 1.0.0
    Authorization: <Authorization credentials>

    {
        "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
        "displayName": "Test SCIMv2",
        "members": [
                {
                "value": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
                "display": "test.user@okta.local"
                }
        ]
    }

The SCIM server response returns the updated Group object:

Copy
Copied
HTTP/1.1 200 OK
Date: Tue, 10 Sep 2019 05:06:25 GMT
Content-Type: text/json;charset=UTF-8

{
    "schemas": ["urn:ietf:params:scim:schemas:core:2.0:Group"],
    "id": "abf4dd94-a4c0-4f67-89c9-76b03340cb9b",
    "displayName": "Test SCIMv20",
    "members": [
        {
            "value": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
            "display": "test.user@okta.local"
        }
     ],
    "meta": {
        "resourceType": "Group"
    }
}

In this example, the members attribute returns a null value. Okta doesn't require the list of Users to be returned, but it does require the other details about the Group.

You can also send a full push of the membership to the SCIM server using the replace operation. This operation replaces all the Group members with the supplied object values.

Copy
Copied
PATCH /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

{
  "schemas": [
    "urn:ietf:params:scim:api:messages:2.0:PatchOp"
  ],
  "Operations": [
    {
      "op": "replace",
      "path": "members",
      "value": [
        {
          "value": "23a35c27-23d3-4c03-b4c5-6443c09e7173",
          "display": "test.user@okta.local"
        },
        {
          "value": "89bb1940-b905-4575-9e7f-6f887cfb368e",
          "display": "test.user@okta.local"
        }
      ]
    }
  ]
}

Note: The SCIM server response to PATCH method requests can also be an HTTP 204 response, with no body returned.

Delete a specific Group

DELETE /Groups/{groupID}

Okta administrators can remove pushed groups from the Admin Console, under the Push Groups tab of the SCIM integration.

On the Push Groups tab, click Active then click Unlink pushed group. In the dialog box that appears, you can choose whether you want to Delete the group in the target app or Leave the group in the target app on the SCIM server.

When you select the Delete the group in the target app option and click Unlink, Okta sends a DELETE method request:

Copy
Copied
DELETE /scim/v2/Groups/abf4dd94-a4c0-4f67-89c9-76b03340cb9b HTTP/1.1
User-Agent: Okta SCIM Client 1.0.0
Authorization: <Authorization credentials>

The SCIM server can return an empty response:

Copy
Copied
HTTP/1.1 204 No Content
Date: Tue, 10 Sep 2019 05:29:25 GMT

Additional references
