Java Microservices with Spring Boot and Spring Cloud

Java Microservices with Spring Boot and Spring Cloud

Java is a great language to use when developing a microservice architecture. In fact, some of the biggest names in our industry use it. Have you ever heard of Netflix, Amazon, or Google? What about eBay, Twitter, and LinkedIn? Yes, major companies handling incredible traffic are doing it with Java.

Implementing a microservices architecture in Java isn’t for everyone. For that matter, implementing microservices, in general, isn’t often needed. Most companies do it to scale their people, not their systems. If you’re going to scale your people, hiring Java developers is one of the best ways to do it. After all, there are more developers fluent in Java than most other languages - though JavaScript seems to be catching up quickly!

The Java ecosystem has some well-established patterns for developing microservice architectures. If you’re familiar with Spring, you’ll feel right at home developing with Spring Boot and Spring Cloud. Since that’s one of the quickest ways to get started, I figured I’d walk you through a quick tutorial.

If you’d rather watch a video, I created a screencast of this blog post.

Create Java Microservices with Spring Cloud and Spring Boot

In most of my tutorials, I show you how to build everything from scratch. Today I’d like to take a different approach and step through a pre-built example with you. Hopefully, this will be a bit shorter and easier to understand.

You can start by cloning the @oktadeveloper/java-microservices-examples repository.

git clone https://github.com/oktadeveloper/java-microservices-examples.git
cd java-microservices-examples/spring-boot+cloud

In the spring-boot+cloud directory, there are three projects:

  • discovery-service: a Netflix Eureka server, used for service discovery.

  • car-service: a simple Car Service that uses Spring Data REST to serve up a REST API of cars.

  • api-gateway: an API gateway that has a /cool-cars endpoint that talks to the car-service and filters out cars that aren’t cool (in my opinion, of course).

I created all of these applications using start.spring.io’s REST API and HTTPie.

http https://start.spring.io/starter.zip bootVersion==2.2.5.RELEASE javaVersion==11 \
  artifactId==discovery-service name==eureka-service \
  dependencies==cloud-eureka-server baseDir==discovery-service | tar -xzvf -

http https://start.spring.io/starter.zip bootVersion==2.2.5.RELEASE \
  artifactId==car-service name==car-service baseDir==car-service \
  dependencies==actuator,cloud-eureka,data-jpa,h2,data-rest,web,devtools,lombok | tar -xzvf -

http https://start.spring.io/starter.zip bootVersion==2.2.5.RELEASE \
  artifactId==api-gateway name==api-gateway baseDir==api-gateway \
  dependencies==cloud-eureka,cloud-feign,data-rest,web,cloud-hystrix,lombok | tar -xzvf -

Java Service Discovery with Netflix Eureka

The discovery-service is configured the same as you would most Eureka servers. It has an @EnableEurekaServer annotation on its main class and properties that set its port and turn off discovery.

server.port=8761
eureka.client.register-with-eureka=false

The car-service and api-gateway projects are configured in a similar fashion. Both have a unique name defined and car-service is configured to run on port 8090 so it doesn’t conflict with 8080.

car-service/src/main/resources/application.properties
server.port=8090
spring.application.name=car-service
api-gateway/src/main/resources/application.properties
spring.application.name=api-gateway

The main class in both projects is annotated with @EnableDiscoveryClient.

Build a Java Microservice with Spring Data REST

The car-service provides a REST API that lets you CRUD (Create, Read, Update, and Delete) cars. It creates a default set of cars when the application loads using an ApplicationRunner bean.

car-service/src/main/java/com/example/carservice/CarServiceApplication.java
package com.example.carservice;

import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.NonNull;
import org.springframework.boot.ApplicationRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.context.annotation.Bean;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.rest.core.annotation.RepositoryRestResource;

import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.Id;
import java.util.stream.Stream;

@EnableDiscoveryClient
@SpringBootApplication
public class CarServiceApplication {

    public static void main(String[] args) {
        SpringApplication.run(CarServiceApplication.class, args);
    }

    @Bean
    ApplicationRunner init(CarRepository repository) {
        return args -> {
            Stream.of("Ferrari", "Jaguar", "Porsche", "Lamborghini", "Bugatti",
                    "AMC Gremlin", "Triumph Stag", "Ford Pinto", "Yugo GV").forEach(name -> {
                repository.save(new Car(name));
            });
            repository.findAll().forEach(System.out::println);
        };
    }
}

@Data
@NoArgsConstructor
@Entity
class Car {

    public Car(String name) {
        this.name = name;
    }

    @Id
    @GeneratedValue
    private Long id;

    @NonNull
    private String name;
}

@RepositoryRestResource
interface CarRepository extends JpaRepository<Car, Long> {
}

Spring Cloud + Feign and Hystrix in an API Gateway

Feign makes writing Java HTTP clients easier. Spring Cloud makes it possible to create a Feign client with just a few lines of code. Hystrix makes it possible to add failover capabilities to your Feign clients so they’re more resilient.

The api-gateway uses Feign and Hystrix to talk to the downstream car-service and failover to a fallback() method if it’s unavailable. It also exposes a /cool-cars endpoint that filters out cars you might not want to own.

api-gateway/src/main/java/com/example/apigateway/ApiGatewayApplication.java
package com.example.apigateway;

import com.netflix.hystrix.contrib.javanica.annotation.HystrixCommand;
import lombok.Data;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.circuitbreaker.EnableCircuitBreaker;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.hateoas.CollectionModel;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.Collection;
import java.util.stream.Collectors;

@EnableFeignClients
@EnableCircuitBreaker
@EnableDiscoveryClient
@SpringBootApplication
public class ApiGatewayApplication {

    public static void main(String[] args) {
        SpringApplication.run(ApiGatewayApplication.class, args);
    }
}

@Data
class Car {
    private String name;
}

@FeignClient("car-service")
interface CarClient {

    @GetMapping("/cars")
    @CrossOrigin
    CollectionModel<Car> readCars();
}

@RestController
class CoolCarController {

    private final CarClient carClient;

    public CoolCarController(CarClient carClient) {
        this.carClient = carClient;
    }

    private Collection<Car> fallback() {
        return new ArrayList<>();
    }

    @GetMapping("/cool-cars")
    @CrossOrigin
    @HystrixCommand(fallbackMethod = "fallback")
    public Collection<Car> goodCars() {
        return carClient.readCars()
                .getContent()
                .stream()
                .filter(this::isCool)
                .collect(Collectors.toList());
    }

    private boolean isCool(Car car) {
        return !car.getName().equals("AMC Gremlin") &&
                !car.getName().equals("Triumph Stag") &&
                !car.getName().equals("Ford Pinto") &&
                !car.getName().equals("Yugo GV");
    }
}

Run a Java Microservices Architecture

If you run all of these services with ./mvnw spring-boot:run in separate terminal windows, you can navigate to http://localhost:8761 and see they’ve registered with Eureka.

Eureka Server

If you cloned from GitHub to begin, and you navigate to http://localhost:8080/cool-cars in your browser, you’ll be redirected to Okta. What the?

Secure Java Microservices with OAuth 2.0 and OIDC

I’ve already configured security in this microservices architecture using OAuth 2.0 and OIDC. What’s the difference between the two? OIDC is an extension to OAuth 2.0 that provides identity. It also provides discovery so all the different OAuth 2.0 endpoints can be discovered from a single URL (called an issuer).

How did I configure security for all these microservices? I’m glad you asked!

I added Okta’s Spring Boot starter to the pom.xml in api-gateway and car-service:

<dependency>
    <groupId>com.okta.spring</groupId>
    <artifactId>okta-spring-boot-starter</artifactId>
    <version>1.4.0</version>
</dependency>

Then I created a new OIDC app in Okta, configured with authorization code flow. You’ll need to complete the following steps if you want to see everything in action.

Open a terminal window and navigate to the api-gateway project.

Create a Web Application in Okta

Before you begin, you’ll need a free Okta developer account. Install the Okta CLI and run okta register to sign up for a new account. If you already have an account, run okta login. Then, run okta apps create. Select the default app name, or change it as you see fit. Choose Web and press Enter.

Select Okta Spring Boot Starter. Accept the default Redirect URI values provided for you. That is, a Login Redirect of http://localhost:8080/login/oauth2/code/okta and a Logout Redirect of http://localhost:8080.

What does the Okta CLI do?

The Okta CLI will create an OIDC Web App in your Okta Org. It will add the redirect URIs you specified and grant access to the Everyone group. You will see output like the following when it’s finished:

Okta application configuration has been written to:
  /path/to/app/src/main/resources/application.properties

Open src/main/resources/application.properties to see the issuer and credentials for your app.

okta.oauth2.issuer=https://dev-133337.okta.com/oauth2/default
okta.oauth2.client-id=0oab8eb55Kb9jdMIr5d6
okta.oauth2.client-secret=NEVER-SHOW-SECRETS

NOTE: You can also use the Okta Admin Console to create your app. See Create a Spring Boot App for more information.

Copy these keys and value into the car-service project’s application.properties file.

The Java code in the section below already exists, but I figured I’d explain it so you know what’s going on.

Configure Spring Security for OAuth 2.0 Login and Resource Server

In ApiGatewayApplication.java, I added Spring Security configuration to enable OAuth 2.0 login and enable the gateway as a resource server.

@Configuration
static class OktaOAuth2WebSecurityConfigurerAdapter extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        // @formatter:off
        http
            .authorizeRequests().anyRequest().authenticated()
                .and()
            .oauth2Login()
                .and()
            .oauth2ResourceServer().jwt();
        // @formatter:on
    }
}

The resource server configuration is not used in this example, but I added in case you wanted to hook up a mobile app or SPA to this gateway. If you’re using a SPA, you’ll also need to add a bean to configure CORS.

@Bean
public FilterRegistrationBean<CorsFilter> simpleCorsFilter() {
    UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
    CorsConfiguration config = new CorsConfiguration();
    config.setAllowCredentials(true);
    config.setAllowedOrigins(Collections.singletonList("*"));
    config.setAllowedMethods(Collections.singletonList("*"));
    config.setAllowedHeaders(Collections.singletonList("*"));
    source.registerCorsConfiguration("/**", config);
    FilterRegistrationBean<CorsFilter> bean = new FilterRegistrationBean<>(new CorsFilter(source));
    bean.setOrder(Ordered.HIGHEST_PRECEDENCE);
    return bean;
}
If you do use a CORS filter like this one, I recommend you change the origins, methods, and headers to be more specific, increasing security.

The CarServiceApplication.java is only configured as a resource server since it’s not expected to be accessed directly.

@Configuration
static class OktaOAuth2WebSecurityConfigurerAdapter extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        // @formatter:off
        http
            .authorizeRequests().anyRequest().authenticated()
                .and()
            .oauth2ResourceServer().jwt();
        // @formatter:on
    }
}

To make it possible for the API gateway to access the Car Service, I created a UserFeignClientInterceptor.java in the API gateway project.

api-gateway/src/main/java/com/example/apigateway/UserFeignClientInterceptor.java
package com.example.apigateway;

import feign.RequestInterceptor;
import feign.RequestTemplate;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.oauth2.client.OAuth2AuthorizedClient;
import org.springframework.security.oauth2.client.OAuth2AuthorizedClientService;
import org.springframework.security.oauth2.client.authentication.OAuth2AuthenticationToken;
import org.springframework.security.oauth2.core.OAuth2AccessToken;
import org.springframework.stereotype.Component;

@Component
public class UserFeignClientInterceptor implements RequestInterceptor {
    private static final String AUTHORIZATION_HEADER = "Authorization";
    private static final String BEARER_TOKEN_TYPE = "Bearer";
    private final OAuth2AuthorizedClientService clientService;

    public UserFeignClientInterceptor(OAuth2AuthorizedClientService clientService) {
        this.clientService = clientService;
    }

    @Override
    public void apply(RequestTemplate template) {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        OAuth2AuthenticationToken oauthToken = (OAuth2AuthenticationToken) authentication;
        OAuth2AuthorizedClient client = clientService.loadAuthorizedClient(
                oauthToken.getAuthorizedClientRegistrationId(),
                oauthToken.getName());

        OAuth2AccessToken accessToken = client.getAccessToken();
        template.header(AUTHORIZATION_HEADER, String.format("%s %s", BEARER_TOKEN_TYPE, accessToken.getTokenValue()));
    }
}

I configured it as a RequestInterceptor in ApiGatewayApplication.java:

@Bean
public RequestInterceptor getUserFeignClientInterceptor(OAuth2AuthorizedClientService clientService) {
    return new UserFeignClientInterceptor(clientService);
}

And, I added two properties in api-gateway/src/main/resources/application.properties so Feign is Spring Security-aware.

feign.hystrix.enabled=true
hystrix.shareSecurityContext=true

See Java Microservices Running with Security Enabled

Run all the applications with ./mvnw spring-boot:run in separate terminal windows, or in your IDE if you prefer.

To make it simpler to run in an IDE, there is an aggregator pom.xml in the root directory. If you’d installed IntelliJ IDEA’s command line launcher, you just need to run idea pom.xml.

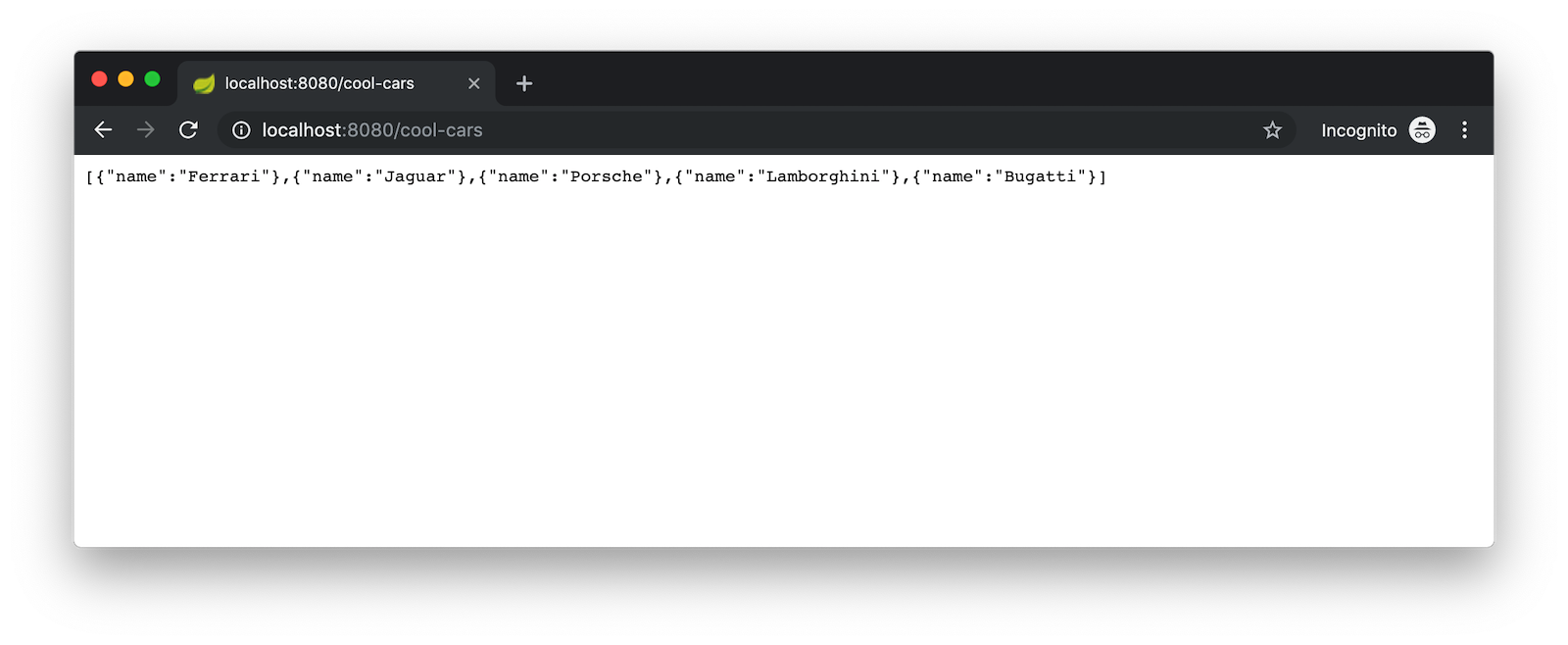

Navigate to http://localhost:8080/cool-cars and you’ll be redirected to Okta to log in.

Okta Login

Enter the username and password for your Okta developer account and you should see a list of cool cars.

Cool Cars

If you made it this far and got the examples apps running, congratulations! You’re super cool! 😎

Use Netflix Zuul and Spring Cloud to Proxy Routes

Another handy feature you might like in your microservices architecture is Netflix Zuul. Zuul is a gateway service that provides dynamic routing, monitoring, resiliency, and more.

To add Zuul, I added it as a dependency to api-gateway/pom.xml:

<dependency>
    <groupId>org.springframework.cloud</groupId>
    <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
</dependency>

Then I added @EnableZuulProxy to the ApiGatewayApplication class.

import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@EnableZuulProxy
@SpringBootApplication
public class ApiGatewayApplication {
    ...
}

To pass the access token to proxied routes, I created an AuthorizationHeaderFilter class that extends ZuulFilter.

package com.example.apigateway;

import com.netflix.zuul.ZuulFilter;
import com.netflix.zuul.context.RequestContext;
import org.springframework.core.Ordered;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.oauth2.client.OAuth2AuthorizedClient;
import org.springframework.security.oauth2.client.OAuth2AuthorizedClientService;
import org.springframework.security.oauth2.client.authentication.OAuth2AuthenticationToken;
import org.springframework.security.oauth2.core.OAuth2AccessToken;

import java.util.Optional;

import static org.springframework.cloud.netflix.zuul.filters.support.FilterConstants.PRE_TYPE;

public class AuthorizationHeaderFilter extends ZuulFilter {

    private final OAuth2AuthorizedClientService clientService;

    public AuthorizationHeaderFilter(OAuth2AuthorizedClientService clientService) {
        this.clientService = clientService;
    }

    @Override
    public String filterType() {
        return PRE_TYPE;
    }

    @Override
    public int filterOrder() {
        return Ordered.LOWEST_PRECEDENCE;
    }

    @Override
    public boolean shouldFilter() {
        return true;
    }

    @Override
    public Object run() {
        RequestContext ctx = RequestContext.getCurrentContext();
        Optional<String> authorizationHeader = getAuthorizationHeader();
        authorizationHeader.ifPresent(s -> ctx.addZuulRequestHeader("Authorization", s));
        return null;
    }

    private Optional<String> getAuthorizationHeader() {
        Authentication authentication = SecurityContextHolder.getContext().getAuthentication();
        OAuth2AuthenticationToken oauthToken = (OAuth2AuthenticationToken) authentication;
        OAuth2AuthorizedClient client = clientService.loadAuthorizedClient(
                oauthToken.getAuthorizedClientRegistrationId(),
                oauthToken.getName());

        OAuth2AccessToken accessToken = client.getAccessToken();

        if (accessToken == null) {
            return Optional.empty();
        } else {
            String tokenType = accessToken.getTokenType().getValue();
            String authorizationHeaderValue = String.format("%s %s", tokenType, accessToken.getTokenValue());
            return Optional.of(authorizationHeaderValue);
        }
    }
}
You might notice that there’s code in the getAuthorizationHeader() method that’s very similar to the code that’s in UserFeignClientInterceptor. Since it’s only a few lines, I opted not to move these to a utility class. The Feign interceptor is for the @FeignClient, while the Zuul filter is for Zuul-proxied requests.

To make Spring Boot and Zuul aware of this filter, I registered it as a bean in the main application class.

@Bean
public AuthorizationHeaderFilter authHeaderFilter(OAuth2AuthorizedClientService clientService) {
    return new AuthorizationHeaderFilter(clientService);
}

To proxy requests from the API Gateway to the Car Service, I added routes to api-gateway/src/main/resources/application.properties.

zuul.routes.car-service.path=/cars
zuul.routes.car-service.url=http://localhost:8090

zuul.routes.home.path=/home
zuul.routes.home.url=http://localhost:8090

zuul.sensitive-headers=Cookie,Set-Cookie

I added a HomeController to the car-service project for the /home route.

package com.example.carservice;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.security.oauth2.server.resource.authentication.JwtAuthenticationToken;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.security.Principal;

@RestController
public class HomeController {

    private final static Logger log = LoggerFactory.getLogger(HomeController.class);

    @GetMapping("/home")
    public String howdy(Principal principal) {
        String username = principal.getName();
        JwtAuthenticationToken token = (JwtAuthenticationToken) principal;
        log.info("claims: " + token.getTokenAttributes());
        return "Hello, " + username;
    }
}

Confirm Your Zuul Routes Work

Since these changes are already in the project you cloned, you should be able to view http://localhost:8080/cars and http://localhost:8080/home in your browser.

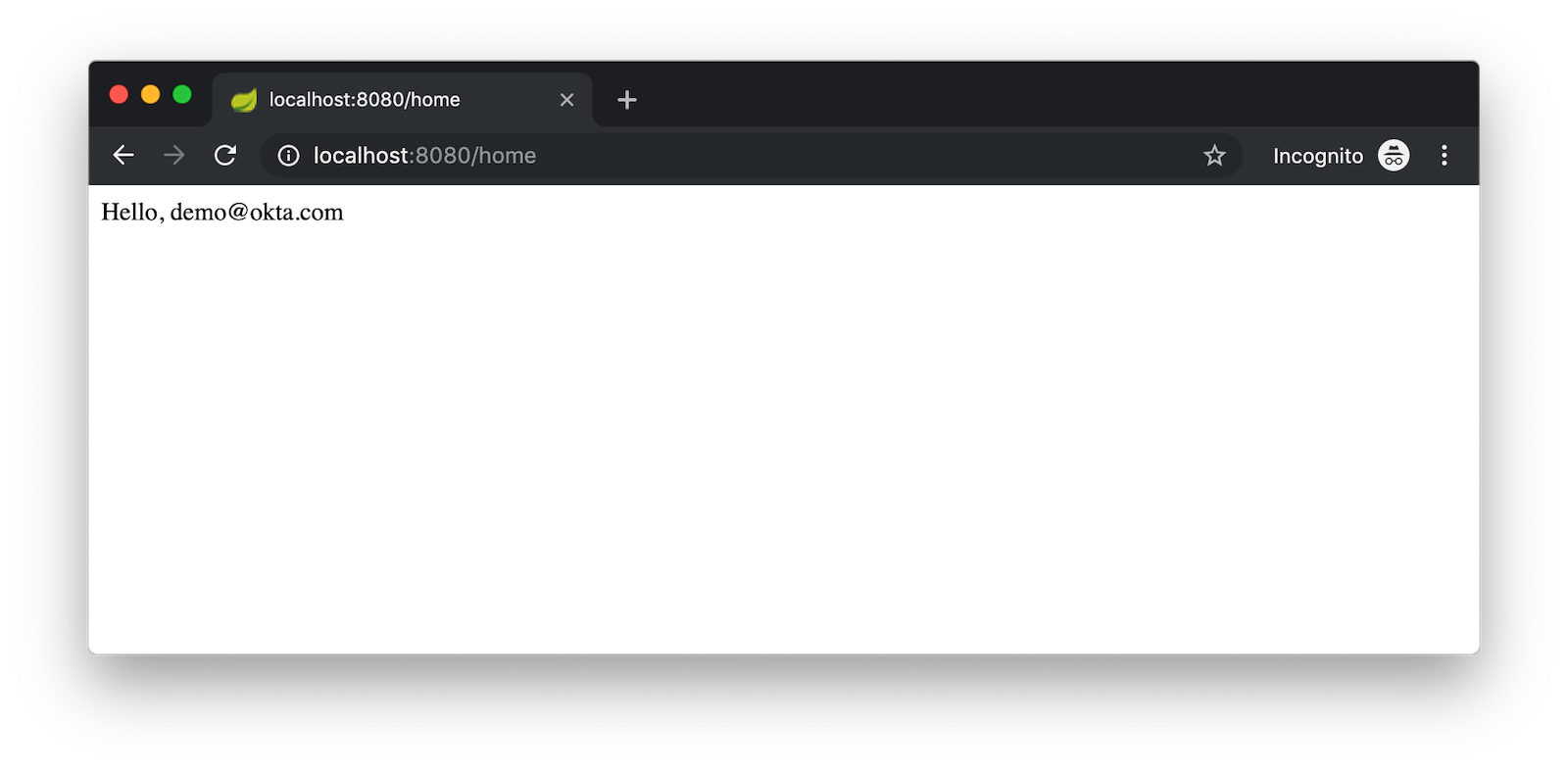

Home with Zuul

What About Spring Cloud Config?

One of the things you might’ve noticed in this example is you had to configure the OIDC properties in each application. This could be a real pain if you had 500 microservices. Yes, you could define them as environment variables and this would solve the problem. However, if you have different microservices stacks using different OIDC client IDs, this approach will be difficult.

Spring Cloud Config is a project that provides externalized configuration for distributed systems. Rather than adding it to this example, I’ll cover it in a future tutorial.

What About Kotlin?

I wrote this post with Java because it’s the most popular language in the Java ecosystem. However, Kotlin is on the rise, according to RedMonk’s programming language rankings from January 2019.

For this quarter, at least, Kotlin grew substantially while all three of its fellow JVM-based counterparts declined. Kotlin jumped so far, in fact, that it finally broke into the Top 20 at #20 and leapfrogged Clojure (#24) and Groovy (#24) while doing so. It’s still well behind Scala (#13), but Kotlin’s growth has been second only to Swift in this history of these rankings so it will be interesting to see what lies ahead in the next run or two.

Spring has excellent support for Kotlin, and you can choose it as a language on start.spring.io. If you’d like to see us write more posts using Kotlin, please let us know in the comments!

Known Issues with Refresh Tokens

By default, Okta’s access tokens expire after one hour. This is expected, and short-lived access tokens are recommended when using OAuth 2.0. Refresh tokens typically live a lot longer — think days or months — and can be used to get new access tokens. This should happen automatically when using Okta’s Spring Boot starter, but it does not.

I configured my Okta org so its access tokens expire in five minutes. You can do this by going to Security > API > Authorization Servers > default > Access Policies, click on the Default Policy, and edit its rule. Then change the access token lifetime from 1 hour to 5 minutes.

Hit http://localhost:8080/cool-cars in your browser and you’ll be redirected to Okta to login. Log in, and you should see a JSON string of cars.

Go do something else for more than 5 minutes.

Come back, refresh your browser, and you’ll see [] instead of all the cars.

I’m still working on a solution to this and will update this post once I find one. If you happen to know of a solution, please let me know!

Update: Spring Security 5.1 doesn’t yet automatically refresh the OAuth access token. It should be available in Spring Security 5.2.

Have More Fun with Spring Boot, Spring Cloud, and Microservices

I hope you liked this tour of how to build Java microservice architectures with Spring Boot and Spring Cloud. You learned how to build everything with minimal code, then configure it to be secure with Spring Security, OAuth 2.0, and Okta.

You can find all the code shown in this tutorial on GitHub.

We’re big fans of Spring Boot, Spring Cloud, and microservices on this blog. Here are several other posts you might find interesting:

Please follow us on Twitter @oktadev and subscribe to our YouTube channel for more Spring Boot and microservices knowledge.

Changelog:

Matt Raible is a well-known figure in the Java community and has been building web applications for most of his adult life. For over 20 years, he has helped developers learn and adopt open source frameworks and use them effectively. He's a web developer, Java Champion, and Developer Advocate at Okta. Matt has been a speaker at many conferences worldwide, including Devnexus, Devoxx Belgium, Devoxx France, Jfokus, and JavaOne. He is the author of The Angular Mini-Book, The JHipster Mini-Book, Spring Live, and contributed to Pro JSP. He is a frequent contributor to open source and a member of the JHipster development team. You can find him online @mraible and raibledesigns.com.

Okta Developer Blog Comment Policy

We welcome relevant and respectful comments. Off-topic comments may be removed.
